Wiring Integration

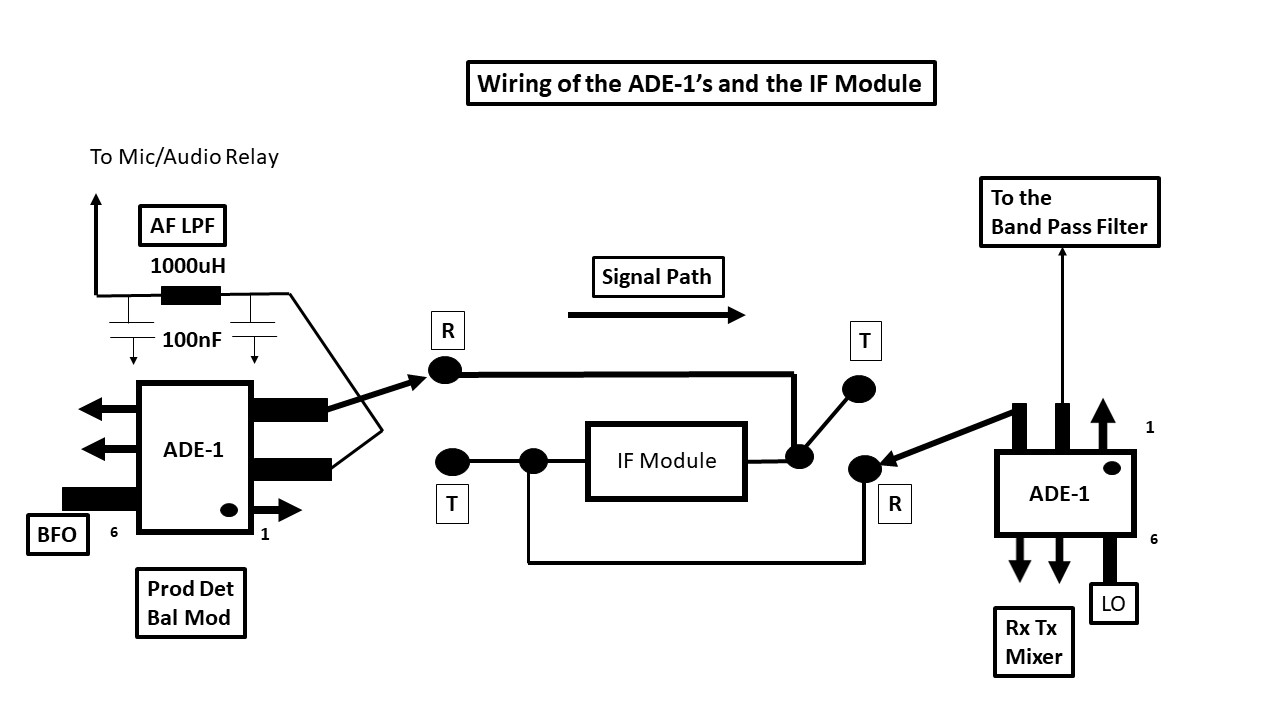

This series of webpages is to document what I have in my head; but you possibly wouldn't kow. The first we will cover is the two Double Balanced Mixers (ADE-1's) and how the are connected so that the signals routed into and out from The IF Module arrive at the proper place. The two relays are 12 VDC SPDT and are communication grade
